TM/TC EGSE
Status:
Available
The EGSE is ideally suited for the verification of FPGA designs and validation of ASIC devices, as well as during the integration of complete TM/TC boards or communication subsystems.
Overview

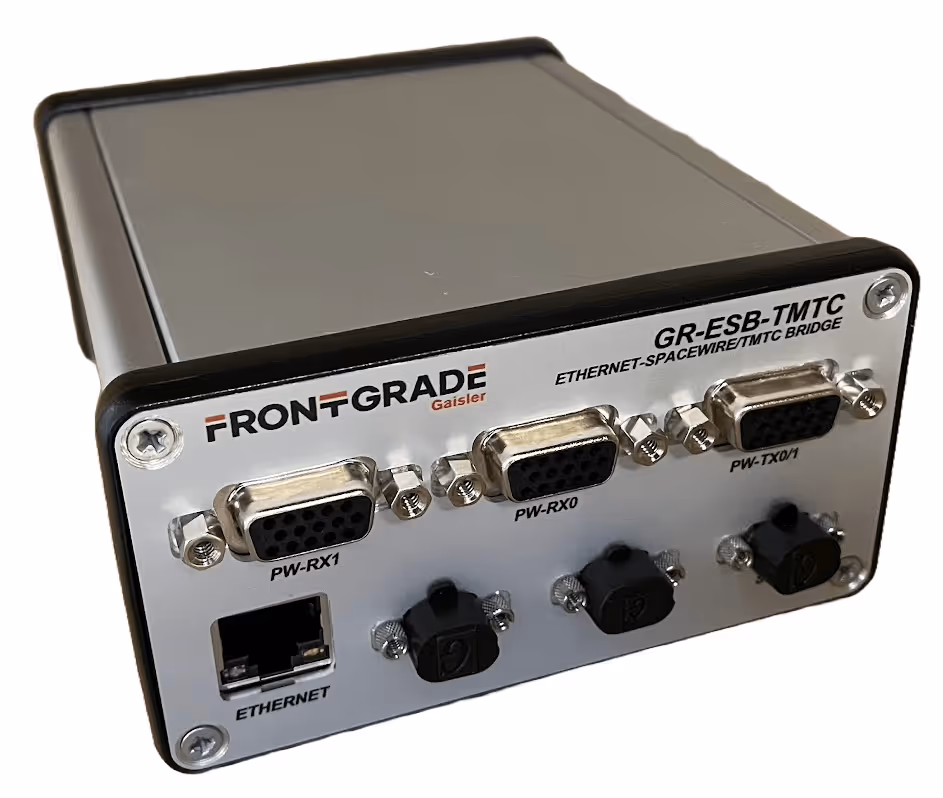

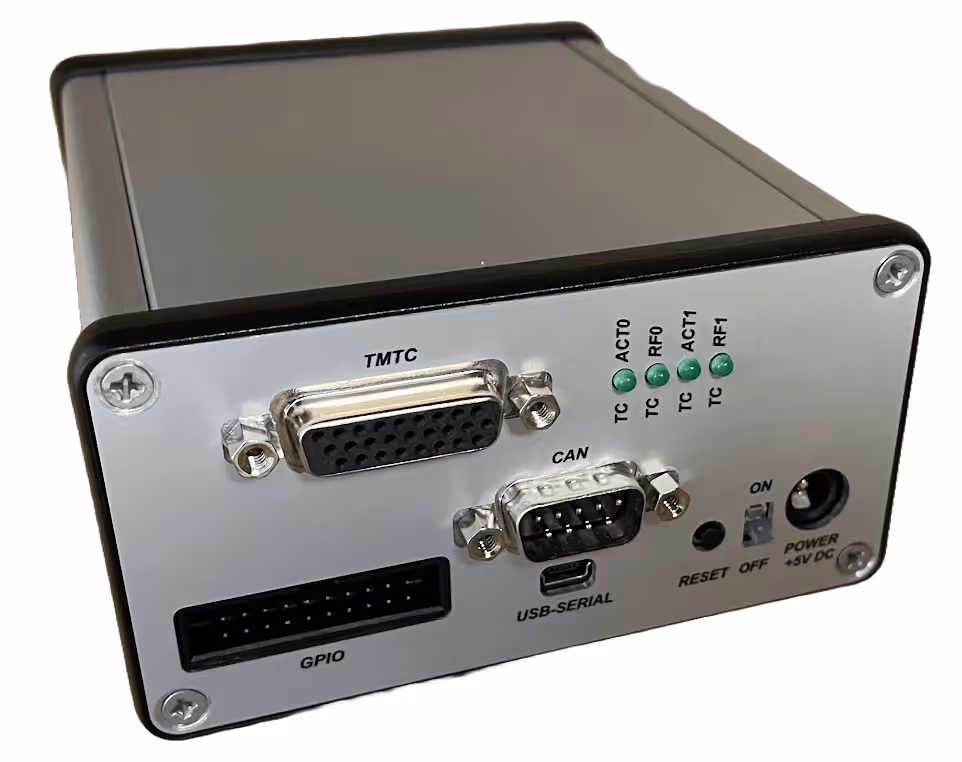

The CCSDS / ECSS Telemetry and Telecommand EGSE (Electrical Ground Support Equipment) provides the necessary means for communicating with the on-board space segment. It has been designed to support satellite integration and test activities, on-board space segment development, ground segment applications, etc.
The EGSE communicates directly with the on-board telemetry encoder and telecommand decoder devices, TM/TC boards and units, bypassing the transponder. The EGSE is ideally suited for the verification of FPGA designs and validation of ASIC devices, as well as during integration of complete TM/TC boards or communication subsystems.
The TM/TC EGSE comprises two parts: a generic hardware implementing the lower CCSDS / ECSS protocol levels; and advanced software implementing the higher CCSDS / ECSS protocol levels. The TM/TC EGSE is fully compliant with the latest CCSDS recommendations and ECSS standards.
Architecture
Key Tech Spec
Target technology support
Evaluation boards
Ordering information
Development Kit
Licensing
Software
Tools
Block diagram
Supported Hardware
Configuration
Reference Design
Other resources
Detailed features
The TM/TC EGSE hardware establishes the link between the on-board flight segment and the ground segment software. The EGSE features standardized RS422 interfaces supporting up to 10 MBPS transfers on the downlink and up to 1 MBPS on the uplink. The EGSE hardware communicates with the ground segment software through a 10/100/1000 Mbit/s Ethernet interfaces via TCP/IP. The TM/TC EGSE hardware is based on our GRTMRX and GRTCTX IP cores.
Telecommand transmitter capabilities:
- Frame Error Control Field (FECF)
- Pseudo-Randomizer (PSR)
- Bit Transition Generator (BTG)
- Communications Link Transmission Unit (CLTU)
- Start Sequence insertion
- Bose-Chaudhuri-Hocquenghem (BCH)
- Tail Sequence insertion
- Physical Layer Operations Procedures (PLOP-1, PLOP-2)
- Non-Return-to-Zero Mark/Level (NRZ-M/L)
Telemetry receiver capabilities:
- Operation Control Field (OCF) extraction
- Frame Error Control Field (FECF) calculation
- Pseudo-De-Randomizer (PSR)
- Attached Sync Marker search (ASM)
- Non-Return-to-Zero Mark/Level (NRZ-M/L)
- Convolutional Quick-Look Decoder
- Split-Phase Level de-modulator (SP-L)
- Sub-Carrier de-modulator (auto-detection)
- The EGSE hardware can efficiently communicate with the library of CCSDS/ECSS software routines described in the software section
