The NOEL-V is a synthesizable VHDL model of a processor that implements the RISC-V architecture. The NOEL-V is designed for space applications, targeting high-performance and fault-tolerance. The processor model offers many customization options and its advanced design required advanced verification strategies.
The Challenge of Processor Verification
Traditional processor verification methodologies often rely on a combination of simulation, formal methods, and emulation. Simulation-based approaches entail executing test vectors on a model of the processor to validate its behavior against the expected outcomes. While effective, simulation is time-consuming and may not capture all corner cases. Formal methods, on the other hand, provide mathematical proofs of correctness but are often limited in scalability and practicality. Emulation offers a middle ground, but it is costly and complex to set up.
The RISC-V ecosystem’s flexibility allows us to tailor verification approaches to better suit various implementations and configurations.
Our Approach: Comparative Analysis with SPIKE

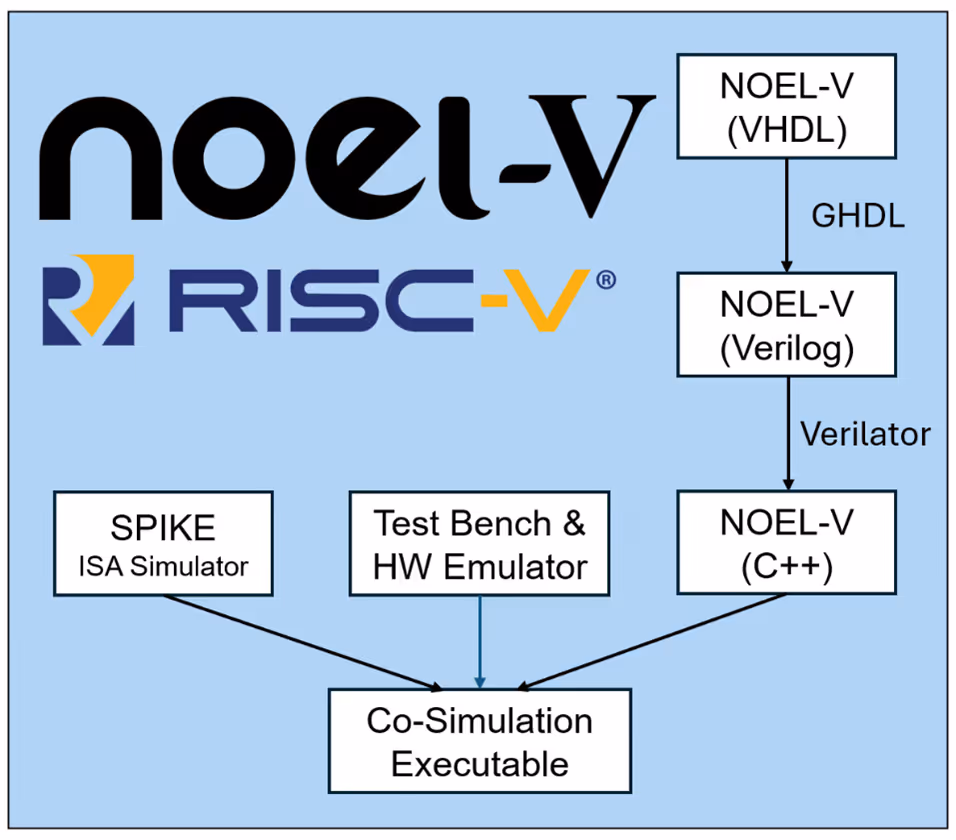

Our verification strategy for the NOEL-V processor revolves around comparing execution flows between two models: the behavioural simulation of NOEL-V’s VHDL implementation and the SPIKE RISC-V ISA simulator. This method is based on:
- Maintaining consistent states between the two processor models. Any deviations are pinpointed with accuracy, indicating discrepancies between the implementation and the reference model.
- Introduction of implementation-specific behaviours into SPIKE with minimal alterations: certain hardware components, like specific I/O devices, may require state overwriting in SPIKE to ensure a consistent state.
Leveraging Verilator and VHDL Integration
Verilator, an open-source tool, converts Verilog designs into cycle-accurate behavioral models in C++. This conversion speeds up simulation and integrates with SPIKE, which is also C++-based. For our VHDL-based NOEL-V design, we use GHDL to convert VHDL code into a Verilog netlist, which then is fed to Verilator. This allows us also to reduce considerably the simulation time, comparing to other HDL simulators.
Enhancing SPIKE with a custom API
To facilitate effective co-simulation, we turned SPIKE into a shared library and developed a comprehensive API to interact with it. This allows for interaction through Direct Programming Interface (DPI) calls within traditional RTL testbenches. Moreover, it can integrate with Verilator C++ testbenches, offering native interaction capabilities.
This API supports various functionalities essential for efficient processor verification and debugging, such as:
- Per hart interaction
- Instruction stepping
- CSR write/read
- Register write/read
- Get current PC and next PC
- Get current Privilege mode
- Atomics: Store conditional cancelation
- Interrupt: NMI + Normal IRQ
- Memory transactions (virtual & physical address)
- Page walk
- Disassembly (for convenience)
Optimizing Debugging with Snapshots
Despite Verilator’s high speed as a simulator, it doesn’t match the performance of physical hardware. To address this, we implemented snapshot capabilities using the SMRNMI RISC-V extension. This allows us to capture the entire machine state and resume execution from any point, dramatically speeding up testing and debugging processes.
Conclusion
Our co-simulation strategy for NOEL-V, which combines behavioural simulation with SPIKE and utilizes advanced tools like Verilator and GHDL, facilitates verification using a very large number of test vectors, without requiring an unreasonably long simulation time. By integrating SPIKE with a custom API and implementing snapshot capabilities, we enhance the efficiency of our testing procedures and accelerate the whole design process.
