LEON-XCKU

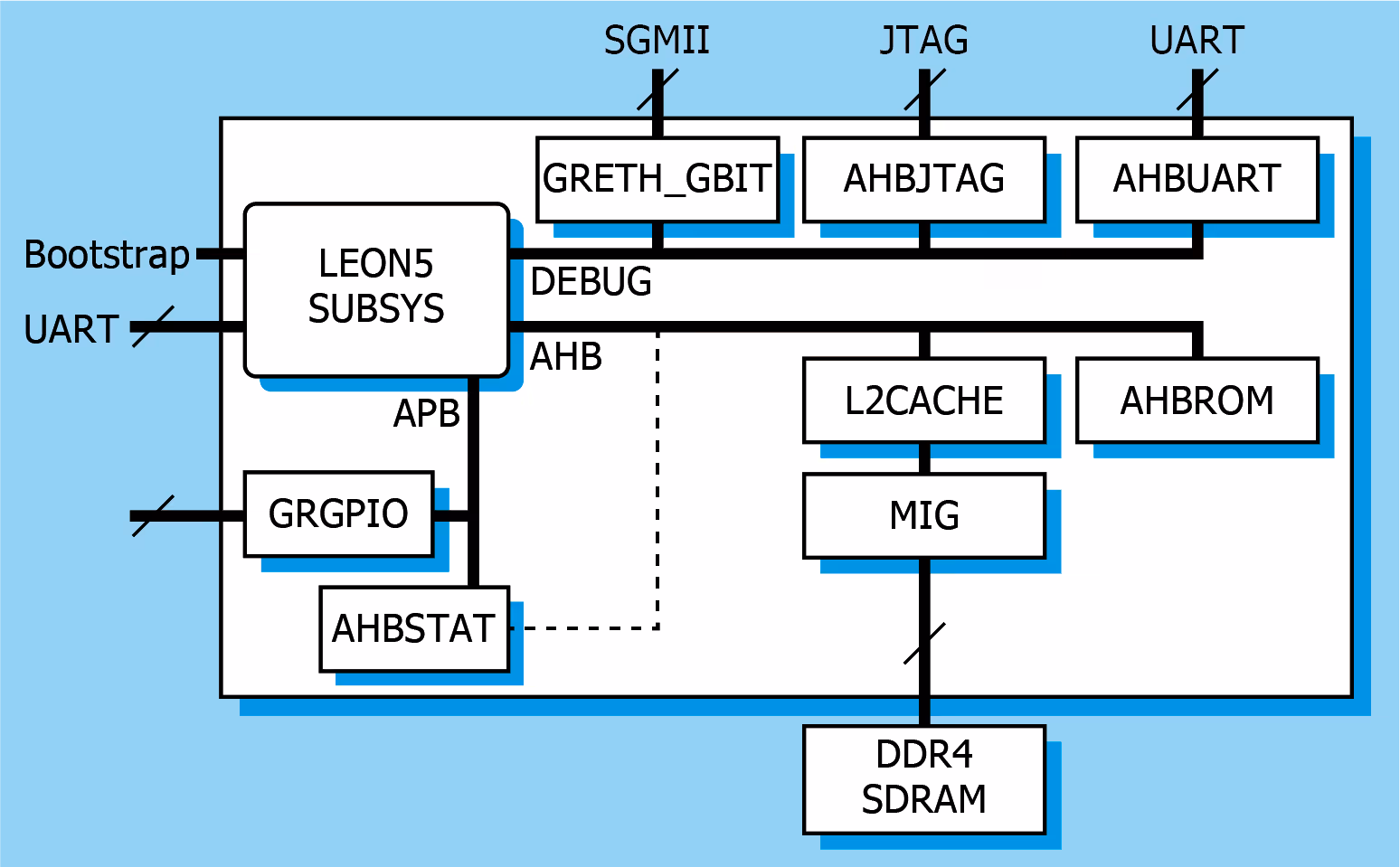

The LEON5 processor and the GRLIB IP library have support for Xilinx Kintex Ultrascale devices. We provide prebuilt bitstreams of the Xilinx Kintex UltraScale FPGA KCU105 Evaluation Kit. These bitstreams are intended for evaluation of software running on a LEON5 SoC.

The IP library support consists of a techmap layer that wraps specific technology elements such as memory macros and pads. GRLIB also contains template designs for developments boards such as the Xilinx Kintex UltraScale FPGA KCU105 Evaluation Kit and infrastructure that automatically builds project files for Xilinx Vivado and synthesis tools such as Mentor Precision Hi-Rel and Synopsys Synplify Premier. More information about GRLIB and our IP cores is available on the SoC library page.

To evaluate the example bitfiles the following items are required:

• Xilinx Kintex UltraScale FPGA KCU105 Evaluation Kit
• Workstation with GNU/Linux or Microsoft Windows
• Xilinx software to program FPGA
• Bitstream, available further down on this page
• GRMON debug monitor - evaluation version (3.2.16 or later is required)
